The Distiller module

Overview of the interface

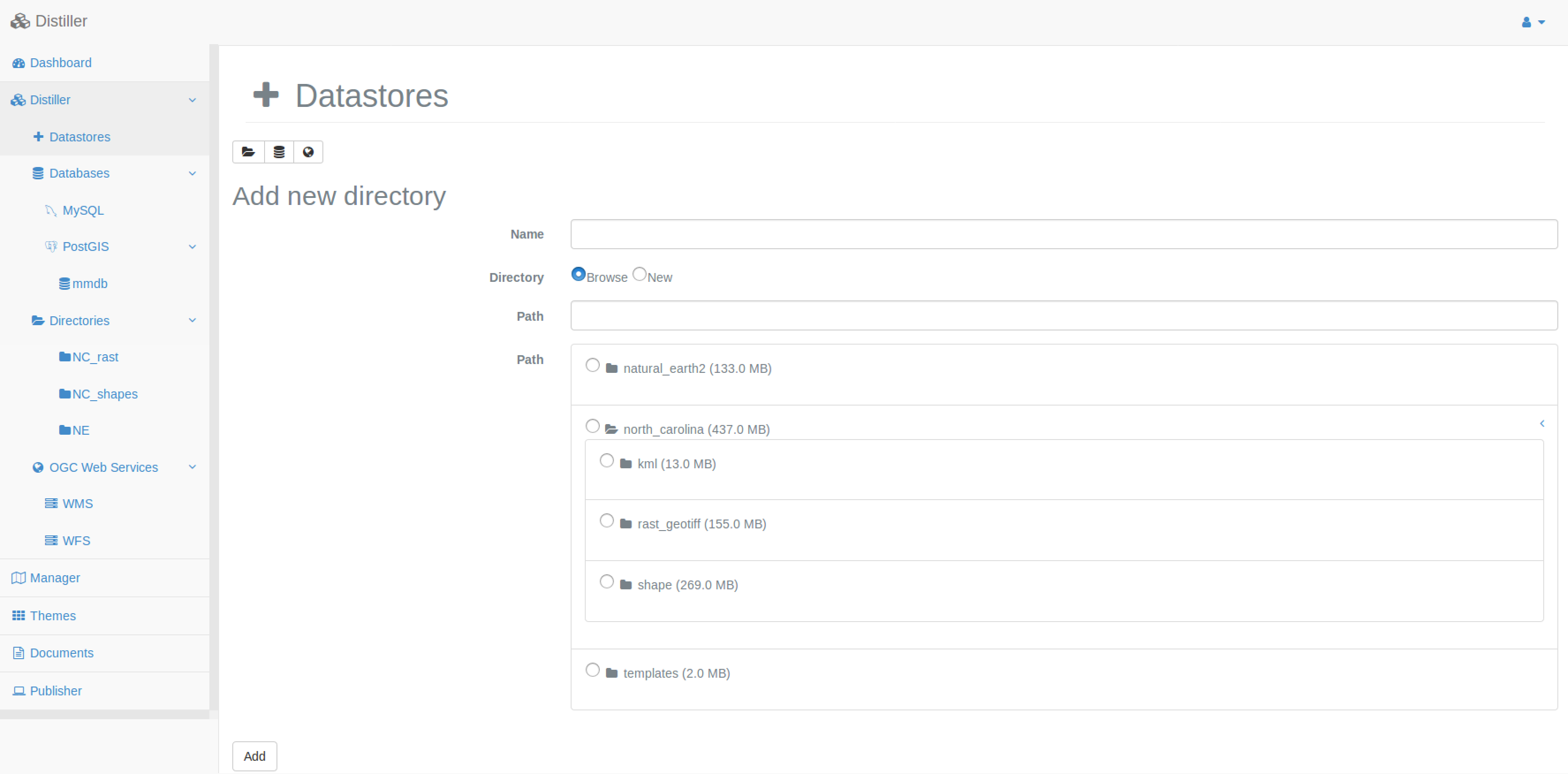

The Distiller Interface contains two pannels and looks like the following.

PDF icon

The Data Stores

A Datastore is containing data sources, it can be local or remote. It is defined by a unique name and various parameter depending on its type. By now, there is 4 differents datastore types supported in MapMint:

Icon Type Action
Add database DataBase Add a database connection
Add directory Directory Add a server directory
Add OGC Service OGC Server Add a remote WMS/WFS server

Warning

The datastore name should not contain any accent or any special charater available in any language

During this workshop, you will use the two datastore already available on OSGeoLive 11.0: NC_Raster and NC_Shapes. To make them available through the Distiller, you have to create a symlink to this directories and allow the apache user to make any modification required to store files in this directories. To do this, use the following commands.

sudo ln -s /usr/local/share/data/north_carolina /var/data/ftp/
sudo chown -R www-data:www-data /var/data/ftp/*/

Note

Afterward, you can always add your own data in /var/data/ftp/your-directory and then create a corresponding datastore from your Distiller.

If you check the checkbox on the left hand side (so in the Data Stores section), you will get a list of available datasources in this datastore displayed on the right hand side (so in the Data Sources section).

The Data Sources

A data source is corresponding to GIS data available in a datastore (it can be a table in a database, a shapefile in a directory, a layer in WFS/WMS layer). Various datasource types are supported by MapMint.

Icon Type
Vector point datasource icon Point datasource
Vector line datasource icon Line datasource
Vector polygon datasource icon Polygon datasource
Raster datasource icon Raster datasource

Data sources toolbar

Once listed, each data source available in a datastore have a toolbar associated which contain the following buttons.

Icon Action
Select a datasoruce Select the datasource
Preview icon Preview the datasource
Set privileges Set the pivileges to access the datasouce
Pocess the datasource Pocess the datasource
Download the datasource Download the datasouce
Open the datasouce in the manage Open the datasouce in the manager
Delete datasource icon Delete the datasource
Display content icon Display the datasource (attributes table or histogram)

Warning

When the SRS field contain No EPSG, it means that MapMint understand the SRS of the data source but cannot display it as EPSG code, only when (undefined) is displayed, the SRS is unknown. In such a case, MapMint will use EPSG:4326 definition as default SRS, but you can, at any time, click on this pocess button to create a new datasource with the correct SRS settings.

Quickly preview your data

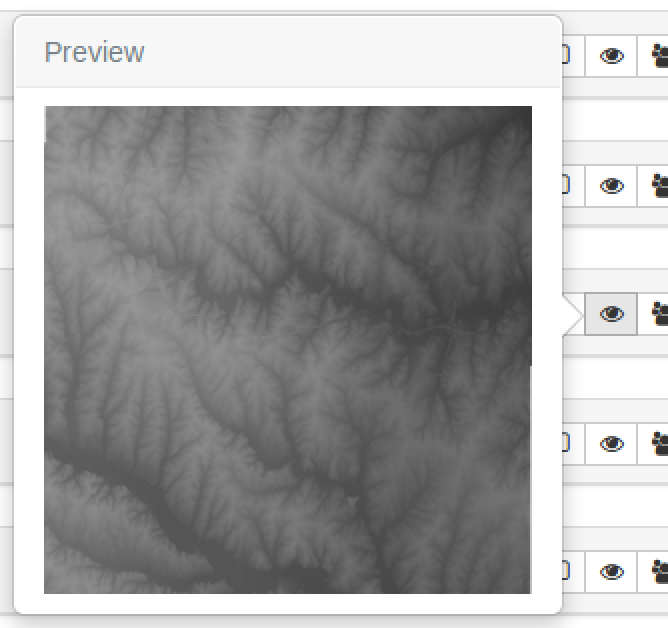

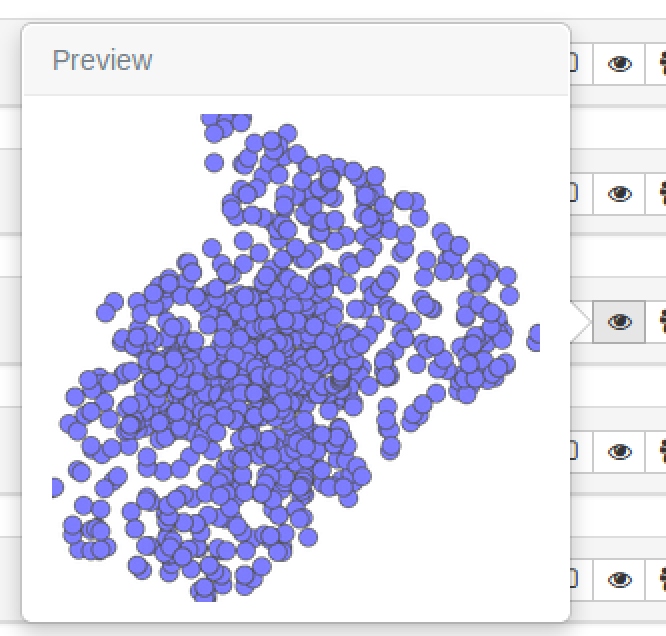

For both vector and raster data source, you can preview your data source by clicking on the Preview button, you will then get a window presenting the data using a GetMap WMS request and which should look like the following:

Vector data source Raster data source
Preview vector window Preview raster window

Vector data sources

You are invited to first display data sources available in the NC_Shapes data store.

Display attributes table

If your press the button looking like a down arrow (the last row of the toolbar table) you can display the attribute values table and browse your data smoothly, you can order and modify column order. One important capability of the table is that you can modify the encoding of your data in case you are using data not in UTF-8 encoding, this way your data will be returned correctly in utf-8 from your WFS server.

Note

Vector data source are always using a basic style you cannot have access to.

Convert vector data sources

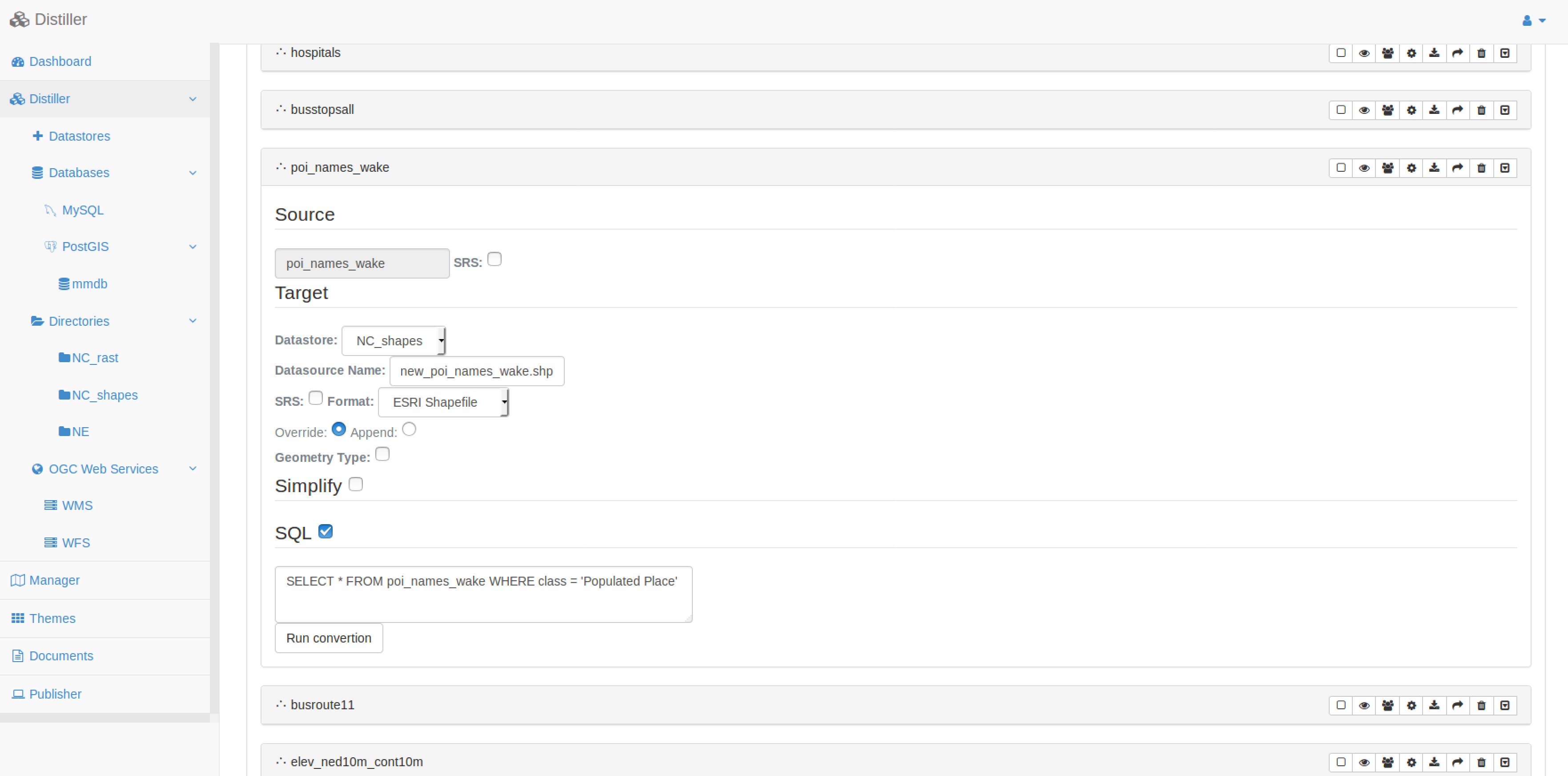

You are invited to click on the Convert button in the toolbar for the poi_names_wake to acces the converting tool window as presented in the screenshot bellow.

Ogr2ogr window

The Vector Converter window contains various parameters you can set to create a new data source by transforming the original one. There is 4 part in the form:

  • Source SRS: optional, to define the source Spatial Reference System (SRS) (should be onnly used in case there is written (undefined) in the SRS section in the data source toolbar.
  • Target: to define:
    • Datastore: the data store where your data source will be created
    • Datasource name: the data source name which will be created
    • SRS: optional, the SRS used to create the new data source
    • Format: the data source format of your created data source
  • Simplify: optional, give you the capability to simply the data source geometries
  • SQL: optional, give you the capability to simply the data source geometries

Warning

in case the created data source is a file, make sure to add the extension in its name else it will lead to a directory creation making your data store unavailable. So you will have to remove the directory created in case you define wrongly the data source name. Then, to have up-to-date list, first right click on the Data Store unavailable and click on the Refresh item from the displayed contextual menu, then check it again.

We will use the following example: from the points of interrest data source, you would like to extract the subset containing only the Populated Places. So you will first check the SQL section and fill the textarea with the following query:

SELECT * FROM poi_names_wake WHERE "class" = 'Populated Place'

Now, click on the Run convertion button, once your data source will be created, the window should be closed automatically, now you should refresh your data store, by accessing the contextual menu by right click on the NC_Shapes data store. Once the Distiller was reloaded, check your data store again and you should see appearing your new data source.

Note

The Source code of the ZOO-Service vector-converter is based on ogr2ogr from the GDAL library.

Raster data sources

You are invited to first display data sources available in the NC_Raster data store.

Display histogram

If your press the button looking like a down arrow (the last row of the toolbar table) you can display the histogram of your rasyer bands.

Raster tools

As you did previously for vector data, open the Converter window for the elevation data source.

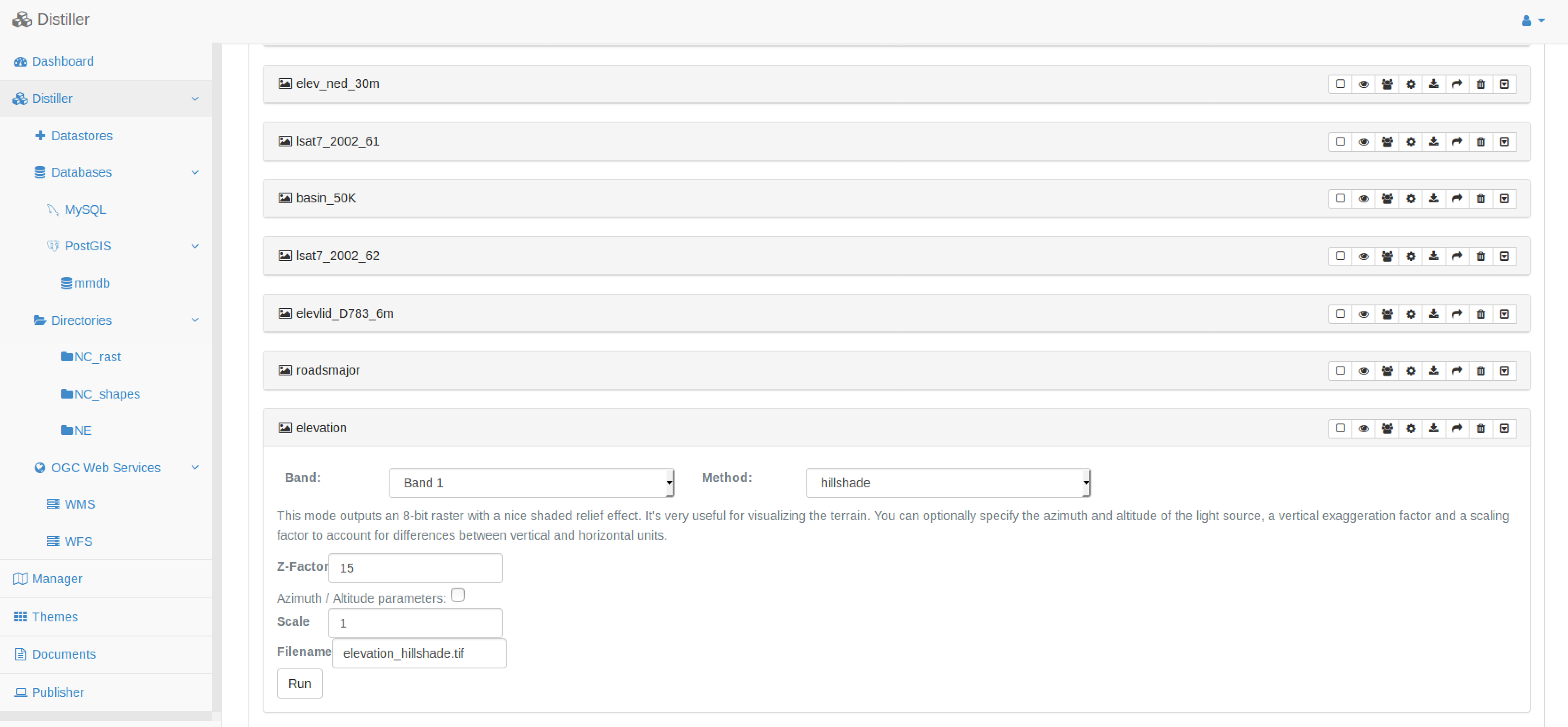

Gdaldem window

Your goal is to create a new raster data sources named elevation_shaded with a nice shaded relief effect. First select the hillshade method, then set the Filename value to test_elevation_shade then click on the Run button.

You are free to generate more raster data sources using other methods, please make sure to change the name any time you generate a new raster data source.

Now, you will simply need to refresh you data store as you did before. Once you have it listed, you can preview it.

Open datasources in the Manager

Using the raster datasources created in the previous step, prior to go to the next section, please select both the elevation_shaded and elevation datasource, then press the Open in the Manager button of the datastore. This should open your manager with the two datasources available as layers from your Manager.

Note

The raster convertion tools presented here are based on gdaldem dan gdal_contour source code from the GDAL library.
