Introduction

A brief overview

General presentation

MapMint is a Geographic Information System (GIS) software running on a web server made to facilitate the adminstration of a Spatial Data Infrastructure (SDI), publishing cartographic portals and dynamic applications.

The MapMint platform is a GIS Software accessible thourgh a simple web browser but also a modular and extensible WEB-GIS application generator. It provides numerous GIS capability and let the user do the following:

  • Import and store GIS data (both vector and raster data)
  • Query Relational Database System and external WMS/WFS servers
  • Publish GIS data by using OGC Web Services: WMS, WFS et WMTS
  • Treate, edit and style data sources
  • Compose and save maps to create application projects (using mapfile)
  • Configure and generate Web GIS applications
  • Configure and use GIS portals
  • Access and share maps

Basic concepts: using the OGC standards

The main idea behind the MapMint solution is the massive usage of OGC Web Services and making all processing in the solution available as WPS services using the ZOO-Project OpenSource software.

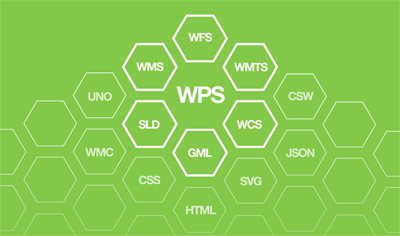

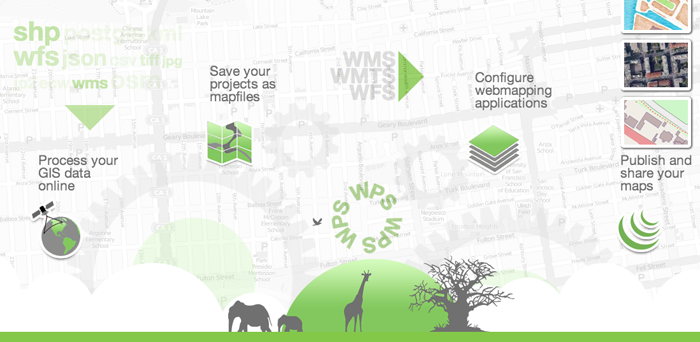

ZOO logo MapMint architecture preview image

Main software components

MapMint is using numerous OSGeo softwares and bring them all together in a complete Web-GIS platform by using the WPS to make them understandable and usable to and from each other.

Software Usage
ZOO logo All the processing in the MapMint solution iso based on the ZOO-Project so on the OGC WPS standard, even to produce dynamic web pages.
MapServer logo MapMint use the MapServer cartographic engine to publish your date through OGC Web Services (WMS,WFS and WCS) in an efficient way.
GDAL logo The abstraction library used to access and interract with datasources transparently is the GDAL/OGR library.
OpenLayers logo MapMint User Interfaces (UI) are using OpenLayers.

The workshop content

In this sections you will find general information about what will be done during this workshop and what are the main objetives, the geographic data used are also brifely introduced.

Workshop schedule

You are invited to use the computer available in the room and to start the OSGeoLive 11.0 virtual machine from virtual box.

The workshop is organized in 5 sections:

  • a presentation on how to install MapMint on your VM
  • a presentation of MapMint and how it works
  • use case example of the module to administrate your GIS data by using an available dataset
  • an example of map production and spreading of the data as WMS and WFS
  • a presentation on how to publish an application using map created previously

Note

Please, do not hesitate, at any time, to ask the presenters any question you may have during the workshop.

Geographic dataset

During this workshop, the geographic dataset used is coming from Edu Data Package North Carolina, provided by contributors of the GRASS GIS project and available per default in OSGeoLive.

Data are subject to Creative Commons Attribution-ShareAlike (CC-BY-SA). More information on this dataset are available on this page .

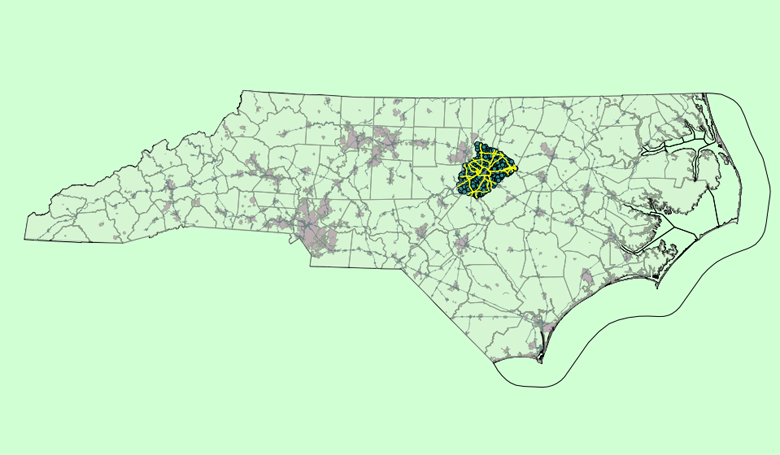

North Carolina dataset snapshot

Installing MapMint on the OSGeoLive 11.0 VM

The MapMint application can be installed very simply using Ansible scripts. It is thus possible to deploy several instances of MapMint through the use of the ansible-playbook. In this section, you will learn how to setup only a single instance which is your local OSGeoLive 11.0 VM.

Before you can install MapMint using Ansible scripts, it is necessary to ensure the presence of some packages and specific Python modules.

sudo apt-get install git python-setuptools openssh-server
sudo easy_install pip
sudo pip install paramiko PyYAML Jinja2 httplib2 six

It is necessary to download Ansible and specific MapMint installation scripts. To do this, use the following commands.

cd
mkdir mm-install
cd mm-install
git clone git://github.com/ansible/ansible.git --recursive
git clone git://github.com/mapmint/ansible-roles mapmint-setup

For making your user able connect to the server on which to install MapMint, you must create a key to enable an automatic authentication. To do this use the following commands.

mkdir ~/.ssh
ssh-keygen -t rsa
sudo mkdir /root/.ssh
sudo cp ~/.ssh/id_rsa.pub /root/.ssh/authorized_keys

Installing MapMint is fully automated via the Ansible previously downloaded scripts, so it only remains to launch it. Before that, it will be necessary to set Ansible and specific scripts installation MapMint to define the name of the machine that will be used to access the instance.

source ~/mm-install/ansible/hacking/env-setup
echo "localhost" > ~/ansible_hosts
sed "s:myhost.net:localhost:g" -i \
   ~/mm-install/mapmint-setup/debian/dependencies/vars/main.yml
export ANSIBLE_INVENTORY=~/ansible_hosts

You are almost ready to start installing MapMint on OSGeoLive 11.0. You only need to make sure that the settings in the installer are correct and the packages required are well available on your local VM. To do this, simply rin the following commands.

~/mm-install/scripts/loVersion.sh
apt-ache search postgres

Once run, the first script will inform you in case you need to edit any file to fix the correct version of the LibreOffice software to install. The second command, will give you the version number of the PostgreSQL server available for your distribution. You also have to search for the correct PostGIS version.

So this first file to edit is ubuntu/dependencies/vars/main.yml. Here, you should set the correct PostgreSQL version, so you should set pgvers to 9.5 when it was initially set to 9.3. In the same way, you should also set the lo_version to 5.3.5 when it was initially set to 5.2.6.

You also have to manually edit the following file: ubuntu/dependencies/tasks/base-packages.yml to set the correct PostGIS version. Search for the line defining the postgis package to setup, it should look like this: postgresql-{{pgvers}}-postgis-2.2. Nevertheless, you have noticed earlier when you was searching for the PostGIS package available that currently the version 2.3 is available. So simply set the package name as: postgresql-{{pgvers}}-postgis-2.3.

Once, you have made all the modifications listed in this section, you are ready to start running the Ansible script. To proceed with the installation, please use the following commands.

cd ~/mm-install/mapmint-setup/ubuntu
ansible-playbook -s server.yml -u root -vv

Once the last command finished, you are almost ready to start using your MapMint instance that you have just setup. Fist you shoud ensure that the settings defined in you main.cfg file is correct and correspond to your setup. To make sure that the main.cfg file is correct, please edit the file /ur/lib/cgi-bin/mm/main.cfg which contains the main settings for yoru MapMint instance. You will need to replace every occurence of myhost.net by localhost. The easiest way to achieve this is to use the following command.

sed -i "s:myhost.net:localhost:g" /usr/lib/cgi-bin/main.cfg

The last step before being able to access your MapMint instance is to edit the following files: public_map/assets/js/cfg.js and mapmint-ui/templates/preview/.htaccess to replace the following value: /~djay/progede2/public_map/assets by this one: /pm/assets.

Now, you are ready to use your MapMint instance.

Welcome to MapMint!

Using MapMint

MaMint is made of an administration interface (MapMint Admin) composed of various modules and a public interface (MapMint Client) containing published maps.

MapMint Admin MapMint Client

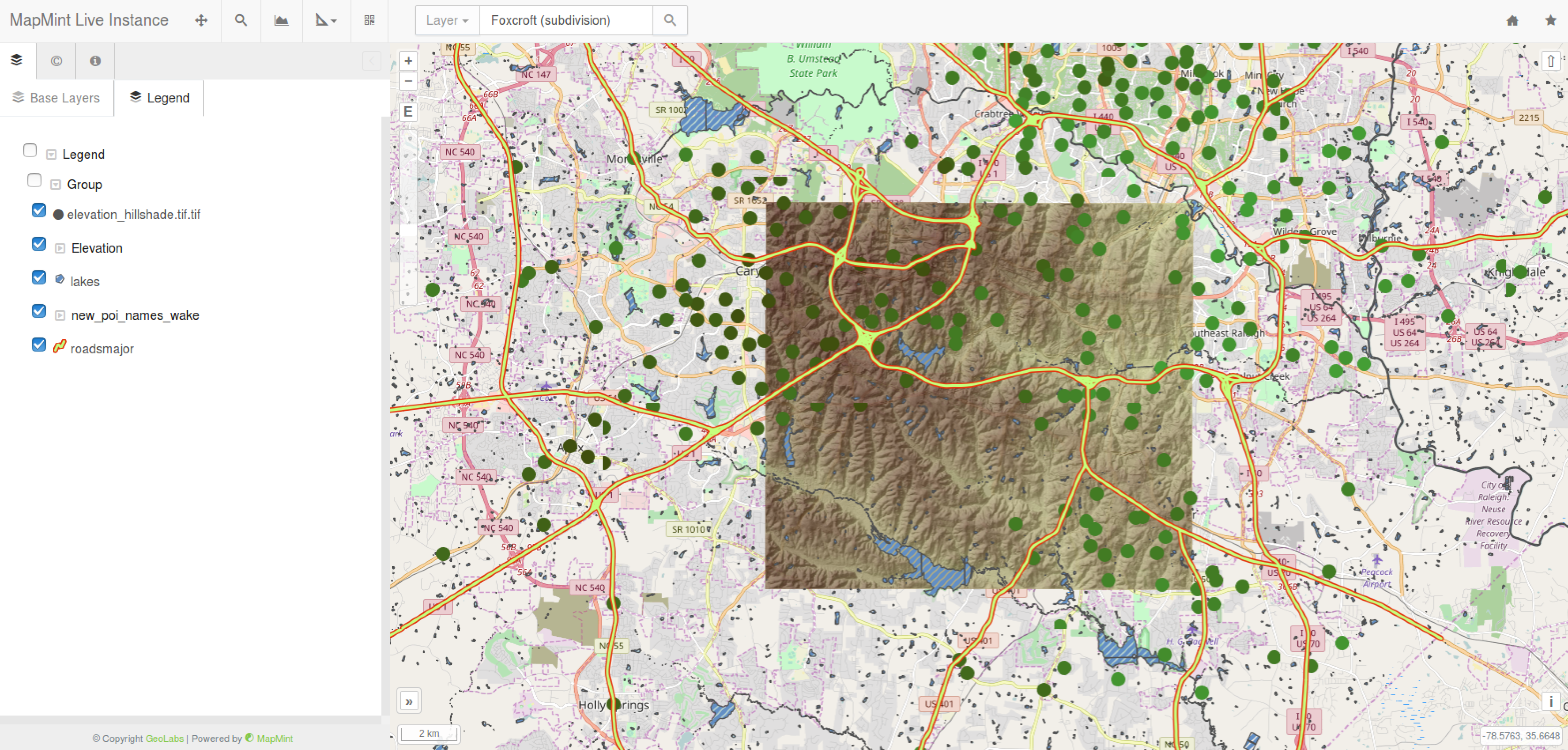

MM admin MM client

MapMint Admin

For accessing the administration interface, first use this link MapMint Admin then fill the login and password provided in the following, then press the login button.

Note

  • login: test
  • password: demo02

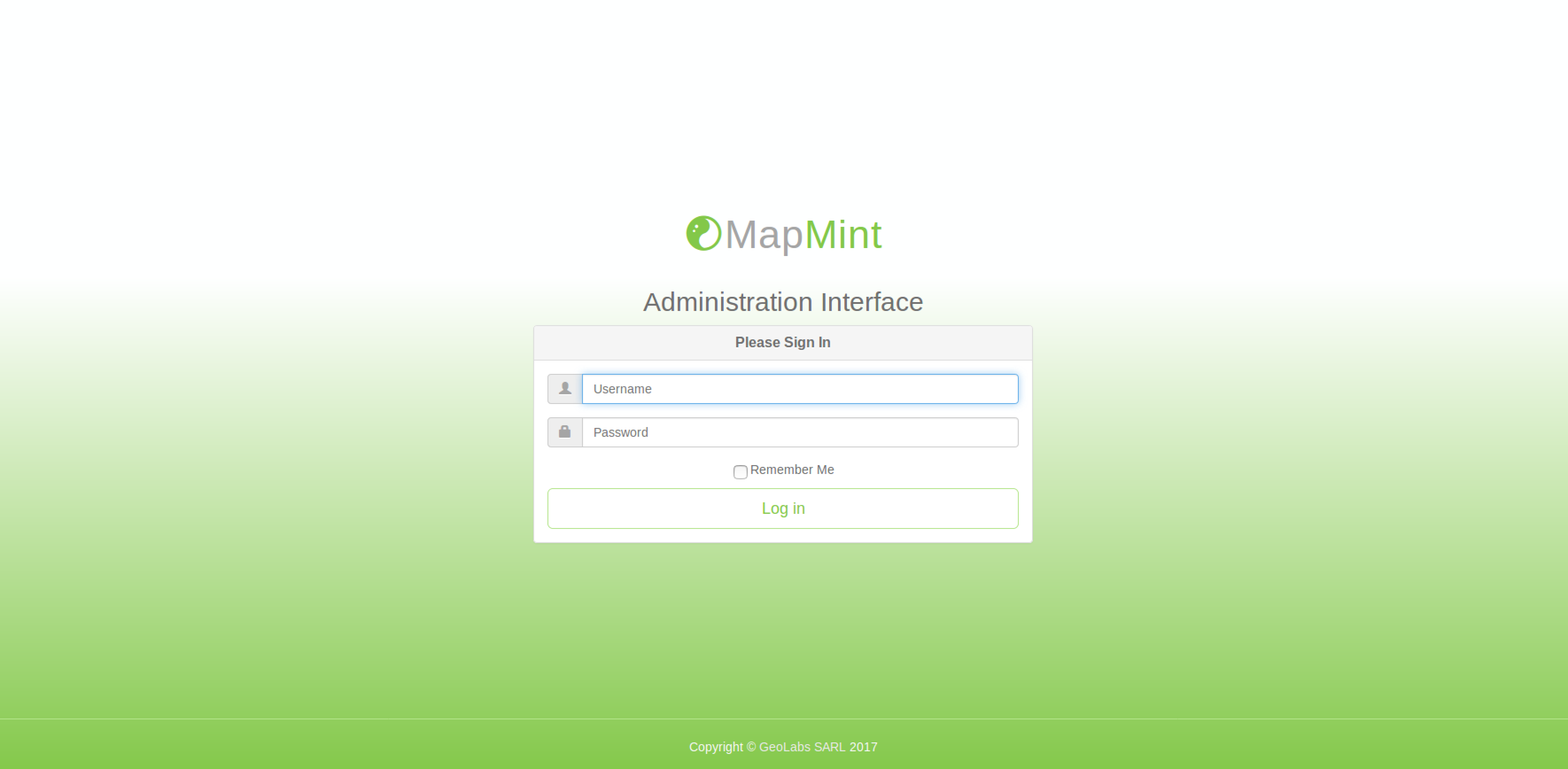

MapMint login screen

Note

You can also simply press Enter rather than using the Login button.

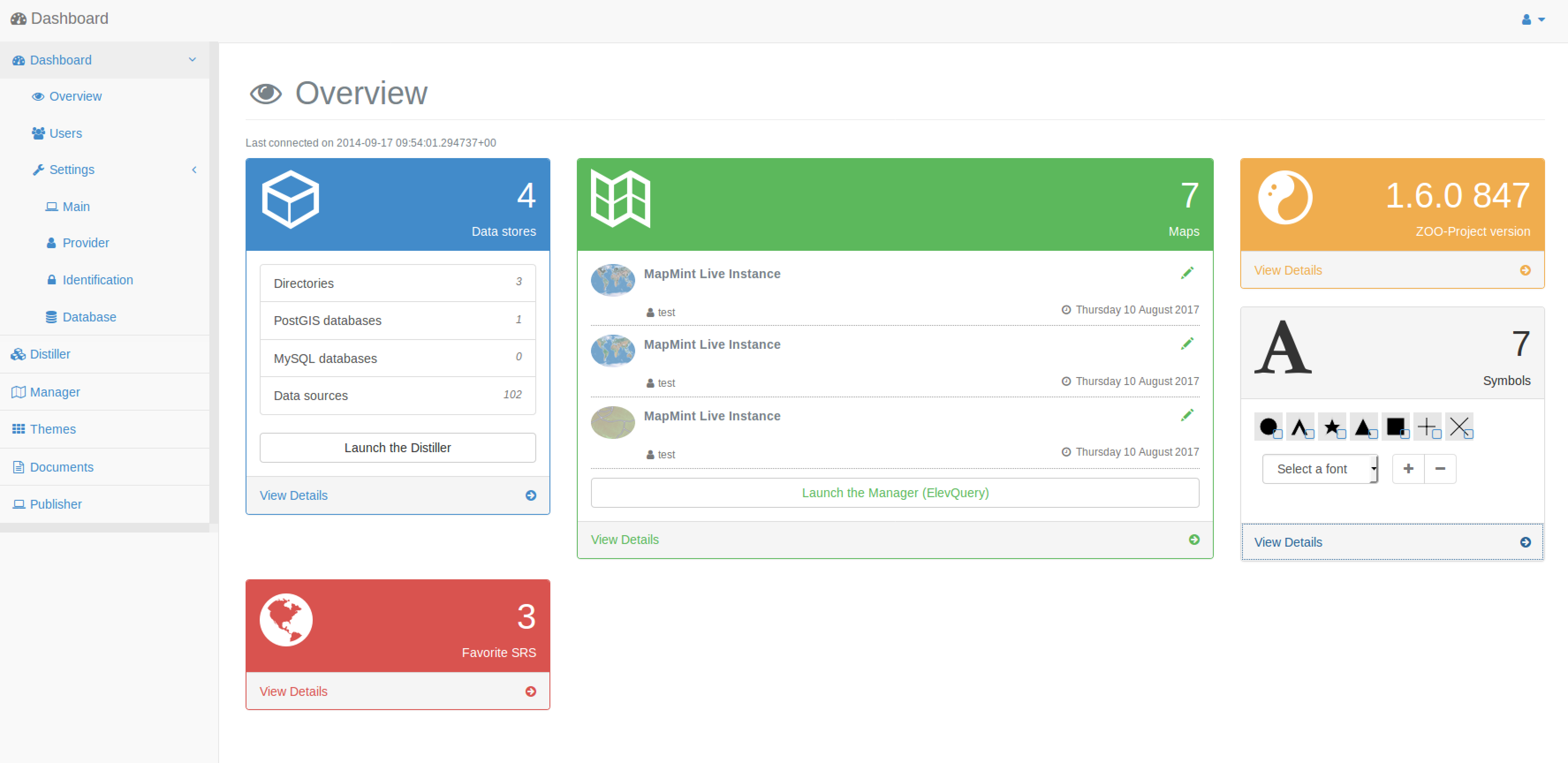

A success message should be displayed on top of your interface then the Dashboard module should load. In case you have a red banner on top rather than the expected green one, then please verify informations you filled.

Despite more modules are vailable in MapMint and can be activated by using specific parameter, for this workshop, the following modules are available in the administration interface. You can access them by using links on top of the interface, once logued in MapMint Admin.

Module URL
Dashboard http://localhost/ui/Dashboard_bs
Distiller http://localhost/ui/Distiller_bs
Themes http://localhost/ui/Themes_bs
Manager http://localhost/ui/Manager_bs
Publisher http://localhost/ui/Publisher_bs

Accessing the public interface

The MapMint public interface can be accessed by using the following link http:localhost/ui/public/. Each published map is accessible from the maps listing page or can be directly accessed by using a specific URL (such as http://localhost/ui/public/your-map-name).

Module URL
Public Interface http://localhost/ui/public/
Published Map http://localhost/ui/public/your-map-name
